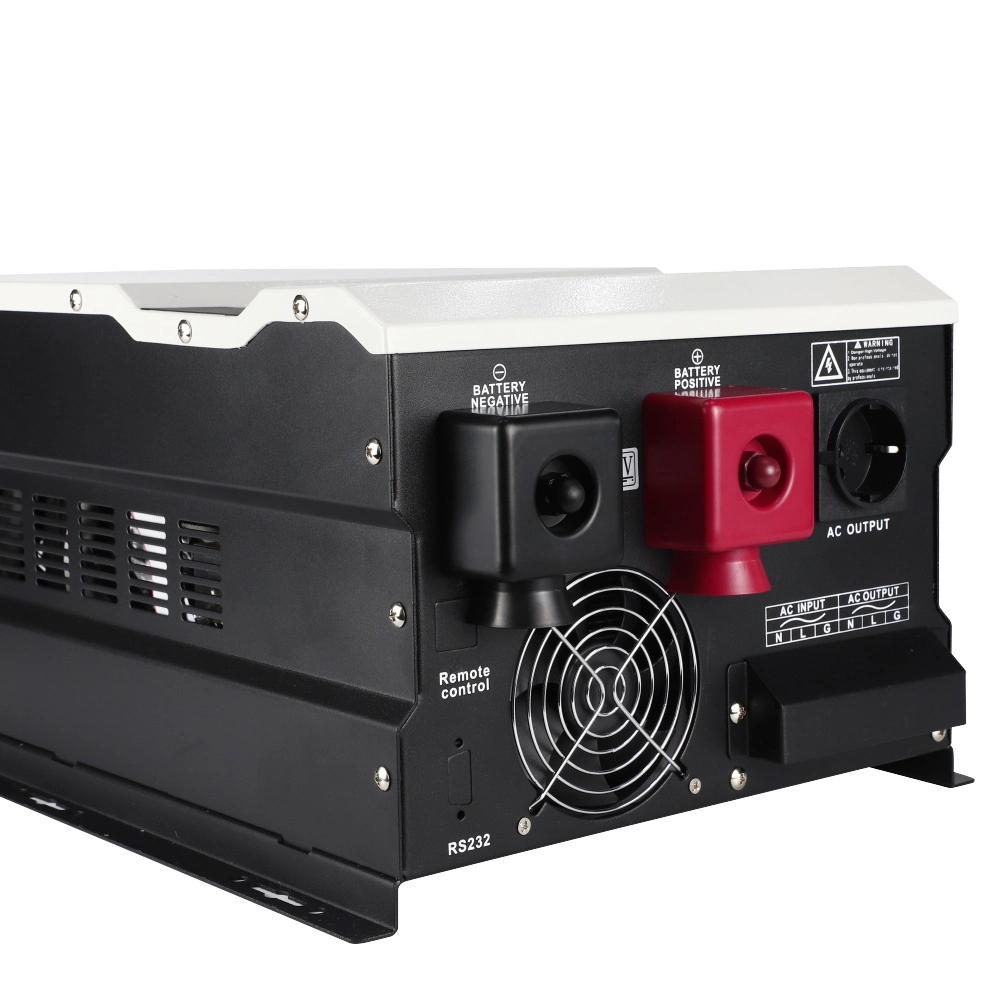

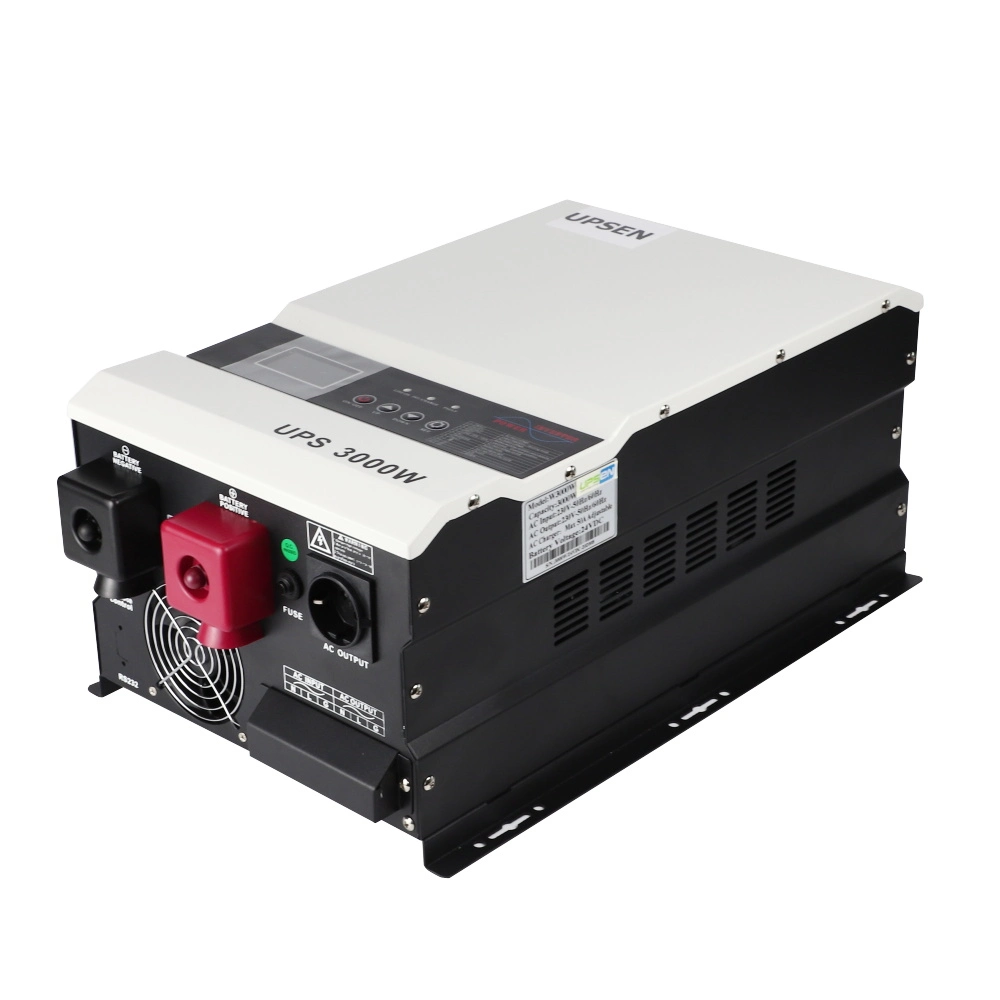

Pure Sinewave DC AC Power Inverter 10KW 48Vdc to 220Vac 50HZ with Max 70A AC Charger
Key Features
Winner Series Inverter Spec Data
1. Pure sine wave output. Rated power: 1KW to 12KW(12V/24V/48V/96V)
2. With UPS function AC to DC automatic conversion
3. Wide AC Voltage & Frequency for AC and Generator Input
4. Can adjust battery voltage for different types of batteries,such as LD: lead-acid battery (default), GEL: gel battery, LI: lithium battery.
5. DC Start & Automatic Self-Diagnostic function ,5 working modes can choose
01 Mains Priority / 02 Energy Saving / 03: Battery Priority
04 Unattended Mode / 05 Solar Priority
6. High Efficency Design & "Power Saving Mode" to Conserve Energy
7. Smart LCD display and setting (Working modes, Charge Current, Charge Voltage,
AC range input , battrty voltage ,Battery low voltage shutdown etc.)
8. High-low voltage protection,overload, short-circuit Protection, under-voltage
and over-temperature protection,over voltage, battery reverse connection(optional)etc.
9. Big AC Charging current 5-35A,5-40A,5-50A,5-60A (optional)
10. Support RS232, RS485 monitoring function with free program,remote monitoring (optional)
Technical Specification
| Winner Series | |||||||||||
| Model | 1KW | 1.5KW | 2KW | 3KW | 4KW | 5KW | 6KW | 8KW | 10KW | 12KW | |
| Inverter Input | Rated Capacity | 1KW | 1.5KW | 2KW | 3KW | 4KW | 5KW | 6KW | 8KW | 10KW | 12KW |
| Peak Power | 3KW | 4.5KW | 6KW | 9KW | 12KW | 15KW | 18KW | 2KW | 30KW | 36KW | |
| Commercial Power Range | 100V / 110V / 115V / 120V: 80VAC - 137VAC 200V / 220V /230V /240V: 160VAC - 275VAC | ||||||||||
| AC Frequency Range | 45 - 65Hz | ||||||||||
| Efficiency | >85% | ||||||||||
| Battery | Type | Lead-acid Battery / GEL Battery / Lithium Battery | |||||||||
| DC Voltage | 12VDC / 24VDC | 24VDC / 48VDC | 48VDC / 96VDC | ||||||||
| Input Voltage Range | 12VDC:10.5 - 15VDC 24VDC:21 - 30VDC 48VDC:42 - 60VDC 96VDC:84 - 120VDC | ||||||||||
| Floating Charge Set | 12V:12.9 ~ 13.6V 24V:25.8V ~ 27.2V 48V:51.6V ~ 54.4V 96V:103.2V ~ 108.8 | ||||||||||
| Low Voltage Restored | 12VDC:12.6 - 14.4VDC 24VDC:25.2 - 28.8VDC 48VDC:50.4 - 57.6VDC 96VDC:100.8 - 115.2VDC | ||||||||||
| Low Voltage Shutdown Set | 12VDC:10 - 10.9V 24VDC:20 - 21.8V 48VDC:40 - 43.6V 96VDC:80V - 87.2V | ||||||||||
| Over Voltage Protection | 12VDC:16.7VDC 24VDC:33.4V 48VDC:66.8V | ||||||||||
| Over Voltage Alarm | 12VDC:15VDC 24VDC:30V 48VDC:60V | ||||||||||
| AC Charging | 5A - 35A (40A, 50A, 60A, 70A, optional) | ||||||||||
| Capable of Starting Electronic Motor | 0.5HP | 1HP | 1.5HP | 2HP | 3HP | ||||||
| Voltage | 110/120/220/230/240VAC ± 2% (DC Mode) 110/120/220/230/240VAC ± 15% (AC Mode) | 110/120/220/230/240VAC ±2% (DC Mode) Synchronize with AC (AC Mode) | |||||||||
| Power Factor | 100% | ||||||||||
| Transfer Time | Typical: 5 - 10ms (Including Detection Time) | ||||||||||
| Temperature Protection | ≥85ºC Alarm ≥90ºC Machine Shut Off | ||||||||||
| Overlord | IPS automatically shut down if overload exceeds 110% - 120% of normal value for 30 seconds, IPS automatically resume work if overload comes to rated load | ||||||||||
| Wave Form | Pure sine wave | ||||||||||
| Frequency | Commercial power supply: shared frequency with the commercial inversion state: 60/50±0.5 | ||||||||||
| Output Frequency Range (Electronic Supply Mode) | Tracking Automatically | ||||||||||
| Protection | Overload, Short Circuit, Battery High and Low Voltage, AC Input High and Low Voltage Protection | ||||||||||
| Conversion Method | Interactive | ||||||||||
| Solar MPPT Controller (Optional) | MPPT Solar Controller | 30A / 50A | 50A / 60A / 80A | 80A / 100A | |||||||
| Solar Input Power | 360W / 720W / 1200W | 1200W / 1440W / 2400W / 2880W / 3840W | 3840W /4800W / 9600W | ||||||||
| Solar Input Voltage(Max) | 12VDC / 24VDC:100V 48VDC:160V 96VDC:200V or 280V | ||||||||||
| Temperature | Operating Temperature | 0ºC ~ 70ºC | |||||||||
| Thermal Method | Cooling fan in intelligent control ≤42ºC fan rotates slowly to ≥45ºC fan rotates fast | ||||||||||
| Appearance | External Size(mm) (L*W*H) | 510*325*215 mm | 645*325*215 mm | 765*320*250 mm | |||||||
| Gross Size(mm) (L*W*H) | 560*380*280 mm | 730*400*290 mm | 840*405*320 mm | ||||||||
| Net Weight(KG) | 14 | 15 | 18 | 20 | 31 | 34 | 35 | 52 | 54 | 56 | |
| Gross Weight(KG) | 16 | 17 | 20 | 22 | 35 | 37 | 38 | 56 | 58 | 60 | |
| Note : Product Specification are Subject to Change Without Further Notice. | |||||||||||
